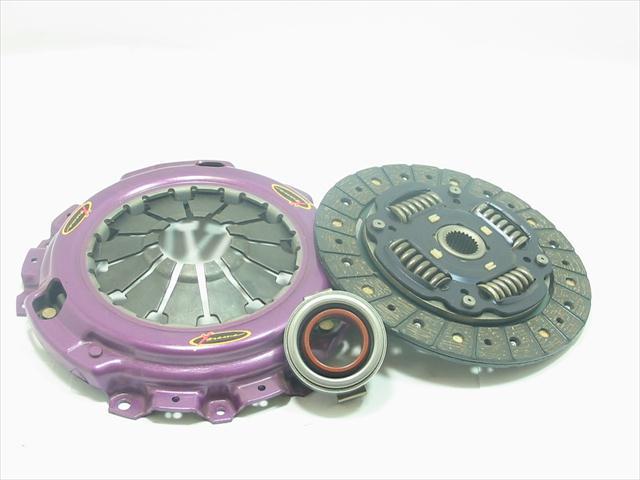

KHN22022-1A | HD ORGANIC CLUTCH KIT

Brand:  Xtreme Performance Clutch

Availability: Call for Availability

LoadingLoading
DescriptionAdditional InfoApplications

The Stage 1 clutch kit uses an upgraded pressure plate with increased clamping pressure, combined with an organic friction disc.

Stage 1 delivers substantial increases in performance and power holding capability whilst retaining near factory type drive-ability, and is designed primarily for high performance road going vehicles.

These kits feature a high quality cover with increased clamping force compared with standard, between 20-40% depending on the demands of the individual vehicle.

They use an organic friction disc to retain drive-ability similar to standard.

Product Details:

  • Clamp Load: 820Kg
  • Torque (Nm): 280
  • Flywheel Step: +1.0mm/.040"
  • Clutch Disc Diameter (mm): 215
  • Clutch Disc Spline Count: 24
  • Clutch Disc Spline Diameter (mm): 26
  • Weight (kg): 5.66

Applications:

ACURA RSX - RSX, Type S, 2.0L 6-Speed (K20, 2.0L 4-cyl DOHC 16V)(0/2001-0/0)

HONDA INTEGRA - 2.0L TYPE R 6-speed (2.0L 4-cyl DOHC 16V 147KW)(6-Speed)(8/2001-on)

HONDA CIVIC EP3 - 2.0L (2.0L 4-cyl EFI K20A Petrol 119KW)(5-Speed FWD)(1/2001-12/2005)

HONDA CIVIC FD2 / FN2 - 2.0L TYPE-R (2.0L 4-cyl MPFI K20Z Petrol 148KW)(6-Speed FWD)(1/2006-12/2011)

  • Description

    The Stage 1 clutch kit uses an upgraded pressure plate with increased clamping pressure, combined with an organic friction disc.

    Stage 1 delivers substantial increases in performance and power holding capability whilst retaining near factory type drive-ability, and is designed primarily for high performance road going vehicles.

    These kits feature a high quality cover with increased clamping force compared with standard, between 20-40% depending on the demands of the individual vehicle.

    They use an organic friction disc to retain drive-ability similar to standard.

    Product Details:

    • Clamp Load: 820Kg
    • Torque (Nm): 280
    • Flywheel Step: +1.0mm/.040"
    • Clutch Disc Diameter (mm): 215
    • Clutch Disc Spline Count: 24
    • Clutch Disc Spline Diameter (mm): 26
    • Weight (kg): 5.66

    Applications:

    ACURA RSX - RSX, Type S, 2.0L 6-Speed (K20, 2.0L 4-cyl DOHC 16V)(0/2001-0/0)

    HONDA INTEGRA - 2.0L TYPE R 6-speed (2.0L 4-cyl DOHC 16V 147KW)(6-Speed)(8/2001-on)

    HONDA CIVIC EP3 - 2.0L (2.0L 4-cyl EFI K20A Petrol 119KW)(5-Speed FWD)(1/2001-12/2005)

    HONDA CIVIC FD2 / FN2 - 2.0L TYPE-R (2.0L 4-cyl MPFI K20Z Petrol 148KW)(6-Speed FWD)(1/2006-12/2011)
