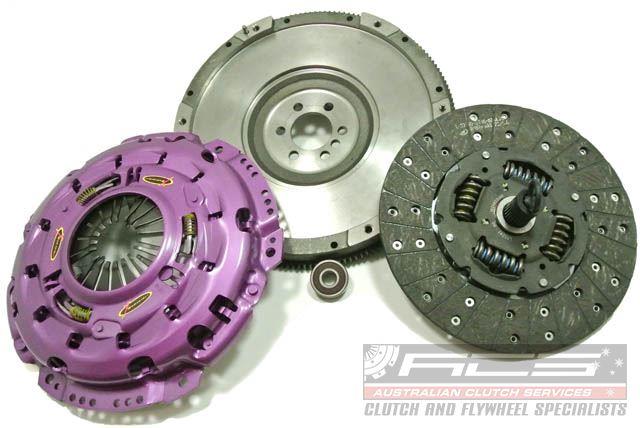

KGM30602-1A | HD ORGANIC CLUTCH KIT

Brand:  Xtreme Performance Clutch

Availability: Call for Availability

LoadingLoading
DescriptionAdditional InfoApplications

The Stage 1 clutch kit uses an upgraded pressure plate with increased clamping pressure, combined with an organic friction disc.

Stage 1 delivers substantial increases in performance and power holding capability whilst retaining near factory type drive-ability, and is designed primarily for high performance road going vehicles.

These kits feature a high quality cover with increased clamping force compared with standard, between 20-40% depending on the demands of the individual vehicle.

They use an organic friction disc to retain drive-ability similar to standard.

Product Details:

  • Clamp Load: 1500Kg
  • Torque (Nm): 833
  • Flywheel Step: 0
  • Clutch Disc Diameter (mm): 300
  • Clutch Disc Spline Count: 26
  • Clutch Disc Spline Diameter (mm): 28.6
  • Weight (kg): 28.3

Applications:

CHEVROLET CAMARO - SS, LS3 6.2L V8 6-speed (6.2L V8 LS3 Petrol)(6-Speed)(0/2009-0/0)

CHEVROLET CORVETTE - 6.2L V8 LS3 EFI Petrol - C6 (6.0L V8 LS3 EFI Petrol)(6-Speed RWD)(/2008-on)

CHEVROLET CORVETTE - 7.0L V8 LS7 EFI Petrol (6-Speed RWD)(2/2007-on)

HOLDEN COMMODORE - 8Cyl VE V8 SS 6.0L 270KW GEN4 (6.0L V8 270KW)(6-Speed T56 RWD)(8/2006-2/2010)

HSV MALOO VE MALOO, - LS2 6.0L V8 (LS2 V8, 6.0L)(10/2007-3/2008)

HSV MALOO VE MALOO, - LS3 6.2L V8 (LS3 V8, 6.2L)(4/2008-2/2010)

HSV CLUBSPORT VE CLUBSPORT R8, - LS2 6.0L V8 (LS2 V8, 6.0L)(8/2006-3/2008)

HSV CLUBSPORT VE CLUBSPORT R8, - LS3 6.2L V8 (LS3 V8, 6.2L)(4/2008-2/2010)

HSV SENATOR VE SENATOR, - LS2 6.0L V8 (LS2 V8, 6.0L)(8/2006-3/2008)

HSV SENATOR VE SENATOR, - LS3 6.2L V8 (LS3 V8, 6.2L)(4/2008-2/2010)

HSV GTS VE GTS, - LS2 6.0L V8 (LS2 V8, 6.0L)(8/2006-3/2008)

HSV GTS VE GTS, - LS3 6.2L V8 (LS3 V8, 6.2L)(4/2008-8/2009)

HSV GTS VE GTS, - LS3 6.2L V8 (LS3 V8, 6.2L)(9/2009-2/2010)

VAUXHALL VXR8 - 6.2L 317KW (6.2L V8 LS3 317KW)(TREMEC T56 6-Speed)(1/2007-1/2010)
