FURY ECU - G4X

Brand:  Link Engine Management

Part Number: 122-4000

Availability: Call for Availability

LoadingLoading
DescriptionAdditional InfoApplications

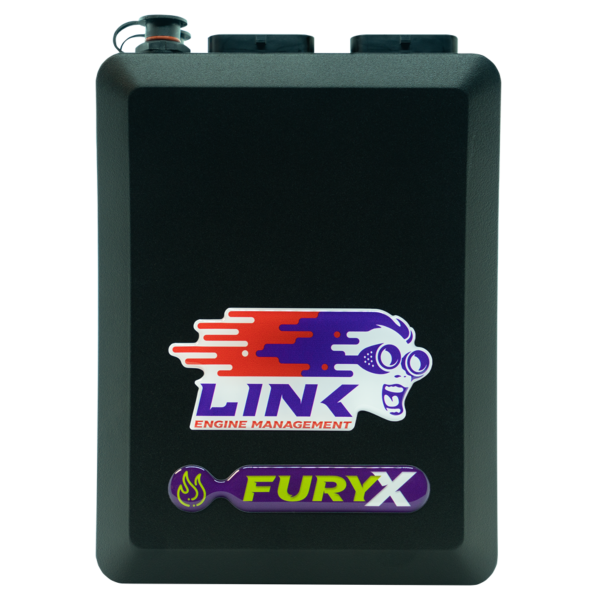

A premium ECU with Onboard Digital Wideband.

The FuryX is a premium ECU like the XtremeX, but with added Onboard Digital Wideband Lambda Control. Now on the G4X platform, the FuryX features a faster processor, faster communications & a huge 512 megabytes of data logging!

With 8 injector drives and 6 ignition drives, the FuryX can control up to 3 rotors or 6 cylinders with sequential injection and direct spark, making it an excellent choice for professional level motorsport or more demanding road car applications.

The added benefit of a Onboard Digital Wideband Lambda Controller means higher accuracy of the unit, plus a simple setup.

The FuryX comes supplied with stickers, a quickstart guide, a mounting bracket and a USB tuning cable. Requires 'A' & 'B' Looms or 'A' & 'B' Pin Kits, not supplied.

See the Specifications tab for a full list of specifications.

Inputs

  • 8/10* x Digital inputs
  • 4 x Temperature inputs
  • 9 x Analog inputs
  • 2 x Trigger inputs
  • 2 x Knock inputs

*2 inputs required when using 2nd CAN Bus

Outputs

  • 8 x Injection drives
  • 6 x Ignition drivers
  • 10 x Auxiliary outputs
  • +5V Sensor power supply
  • +8V Sensor power supply

Communication

  • 2 x Thirty four pin, waterproof connectors
  • 1 x CAN bus
  • 1x Serial (RS232) connection
  • 1x USB tuning connection

Misc.

  • Digital Wideband – superior onboard wideband controlgiving simple and accurate fuel tuning.
  • Optimised for Six Cylinder / 3 Rotor Engines – the G4+ Fury has 6 x ignition outputs and 8 x fuel outputs.
  • Fully programmable e-throttle control complete with gearshift control and throttle blips.
  • CAN is user defined and supports two independent CAN modules.
  • Onboard Knock Control – support for two knock sensorswired directly to the ECU. No external amplifier required.
  • 30 General Purpose Tables and many dedicated tables.
  • 100 channels of logging.
  • 32Mb (4 MByte) of logging memory.
  • Built in trigger oscilloscope.
  • Mixture map, closed loop fuel correction.
  • OBDII output stream – send engine data to your tablet or phone using an OBDII to wifi/bluetooth adaptor (not included).

All Link ECUs (Engine Control Units) are 100% New Zealand designed and developed. We also offer a limited lifetime warranty so if your ECU breaks in the normal course of its designed use then we’ll repair or replace, no questions asked.

  • Description

    A premium ECU with Onboard Digital Wideband.

    The FuryX is a premium ECU like the XtremeX, but with added Onboard Digital Wideband Lambda Control. Now on the G4X platform, the FuryX features a faster processor, faster communications & a huge 512 megabytes of data logging!

    With 8 injector drives and 6 ignition drives, the FuryX can control up to 3 rotors or 6 cylinders with sequential injection and direct spark, making it an excellent choice for professional level motorsport or more demanding road car applications.

    The added benefit of a Onboard Digital Wideband Lambda Controller means higher accuracy of the unit, plus a simple setup.

    The FuryX comes supplied with stickers, a quickstart guide, a mounting bracket and a USB tuning cable. Requires 'A' & 'B' Looms or 'A' & 'B' Pin Kits, not supplied.

    See the Specifications tab for a full list of specifications.

    Inputs

    • 8/10* x Digital inputs
    • 4 x Temperature inputs
    • 9 x Analog inputs
    • 2 x Trigger inputs
    • 2 x Knock inputs

    *2 inputs required when using 2nd CAN Bus

    Outputs

    • 8 x Injection drives
    • 6 x Ignition drivers
    • 10 x Auxiliary outputs
    • +5V Sensor power supply
    • +8V Sensor power supply

    Communication

    • 2 x Thirty four pin, waterproof connectors
    • 1 x CAN bus
    • 1x Serial (RS232) connection
    • 1x USB tuning connection

    Misc.

    • Digital Wideband – superior onboard wideband controlgiving simple and accurate fuel tuning.
    • Optimised for Six Cylinder / 3 Rotor Engines – the G4+ Fury has 6 x ignition outputs and 8 x fuel outputs.
    • Fully programmable e-throttle control complete with gearshift control and throttle blips.
    • CAN is user defined and supports two independent CAN modules.
    • Onboard Knock Control – support for two knock sensorswired directly to the ECU. No external amplifier required.
    • 30 General Purpose Tables and many dedicated tables.
    • 100 channels of logging.
    • 32Mb (4 MByte) of logging memory.
    • Built in trigger oscilloscope.
    • Mixture map, closed loop fuel correction.
    • OBDII output stream – send engine data to your tablet or phone using an OBDII to wifi/bluetooth adaptor (not included).

    All Link ECUs (Engine Control Units) are 100% New Zealand designed and developed. We also offer a limited lifetime warranty so if your ECU breaks in the normal course of its designed use then we’ll repair or replace, no questions asked.

  • Additional Info
  • Applications

    • Universal
